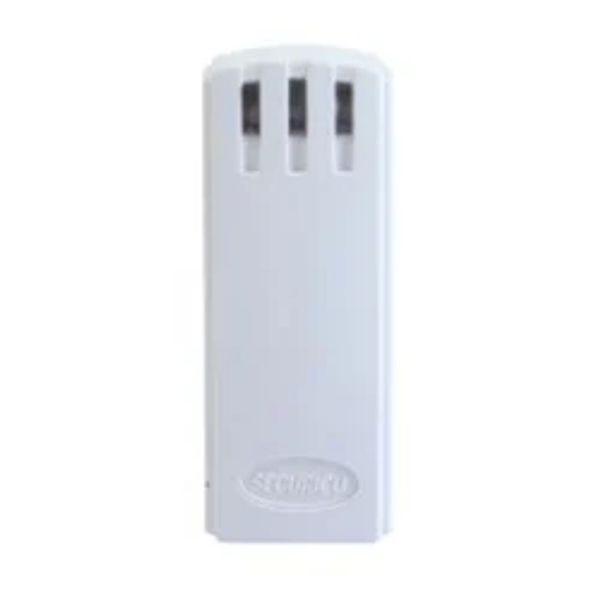

DIGITAL MULTI FUNCTION DETECTOR

---

• Microcontroller based digital MFD
• Detects intrusion attempts  based on 4 logics,
• Advanced sensing algorithms.
• Sleek ABS housing with 3 LED indicators.

• ELECTRICAL
  Operating Voltage : 12V DC
  Supply Current Standby : 20ma
  Supply Current Triggered : 10ma
  Output : Normally closed potential free contact
  Sensor : Piezo Electric

• ENVIRONMENTAL
  Operating Temperature: 0C to 45C
  Storage Temperature: -20C to 60C
  Maximum humidity: 95% non-condensing
  Environment: Residential / Commercial / Light Industrial

• PHYSICAL

Dimensions: 82 mm x 32mm x 19mm
