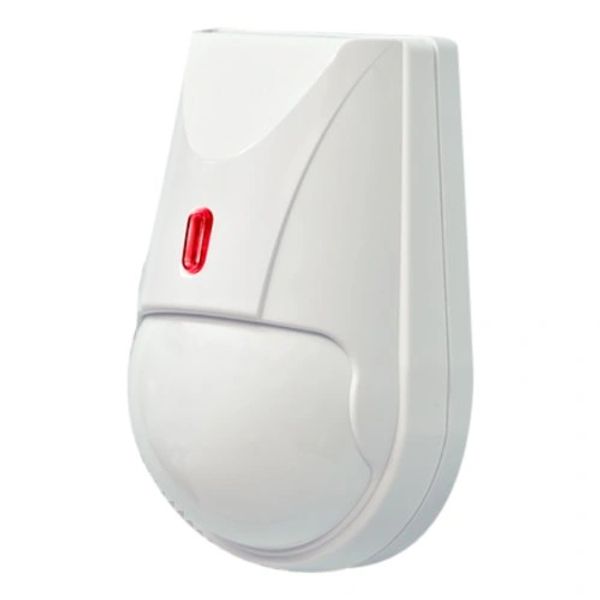

PIR MOTION SENSOR
Features:
- Wide angle with PET immunity up to 20 kg
- Digital temperature compensation
- Temper protection
- Sensitivity adjustment
- Alarm output : energized NC
- Swivel bracket supplied
Technical Specification
- Pet Immunity: 20 kg
- Voltage: 8 to 30V
- Current Consumption: 12mA
- Temperature range: -30 °C to +55 °C
- Protection class: IP41
- Dimensions: 90х60х50 mm
- Installation height: 2,3 meters
- Maximum detection distance: 10 meters
- Detection zone: Volumetric
- Case opening control: Yes
